The Protecta Intumescent Pipe Collar consists of a split white coated, circular steel casing designed to fit around plastic pipes. The collars have a secure and simple locking device, making them easy to install.

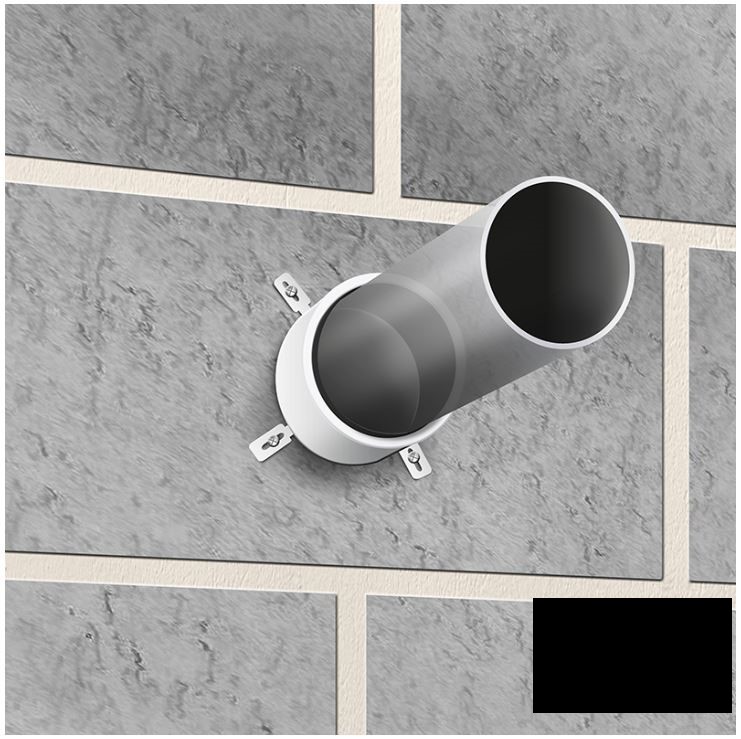

The steel frame contains a graphite based swelling material that reacts to heat and fills the opening from the melting plastic through-penetration in case of a fire. It may be fitted both on the outside of a wall or a floor.
Available in the following sizes:
Ø Diameter / Thickness
Ø32mm/30mm, Ø40mm/50mm, Ø55mm/30mm, Ø63mm/30mm, Ø75mm/30mm, Ø82mm/30mm, Ø90mm/30mm, Ø110mm/30mm, Ø125mm/60mm, Ø140mm/60mm Ø160mm/60mm, Ø200mm/75mm, Ø250mm/75mm, Ø315mm/75mm
Different thickness collars may be ordered on request – please contact us for more information.
KEY FEATURES
- New patented fast expanding graphite material
- For pipe sizes from smallest pipes available to Ø315 mm with a wide range of pipe wall thicknesses (please phone for further information on availability)
- Collars comes in two different heights for different fire classifications to maximize cost efficiency
- Smaller pipes can be fitted within larger collars with the benefit of accommodating pipes that are at an angle or if the opening around the pipe is too large
- Fire classifications up to 120 minutes for both integrity and insulation
- Certified for PVC-U, PVC-C, PE, LDPE, MDPE, HDPE, ABS, SAN+PVC and PP pipes
- Tested and certified for U/U pipe end applications
- Classified for fire sealing in all types of constructions
- Excellent sound insulation
- No emissions – environmentally and user friendly
- Simple to install using widely available standard screws
- Unlimited storage time (under correct conditions)
- 30 years working life guarantee
- Tested by Intertek, report numbers IWTN/W000009628ARL001 and WTN/W000009628RLM001
- CE Marked
- May be used in conjunction with Protecta FR Board
- ETAs can be provided upon request
